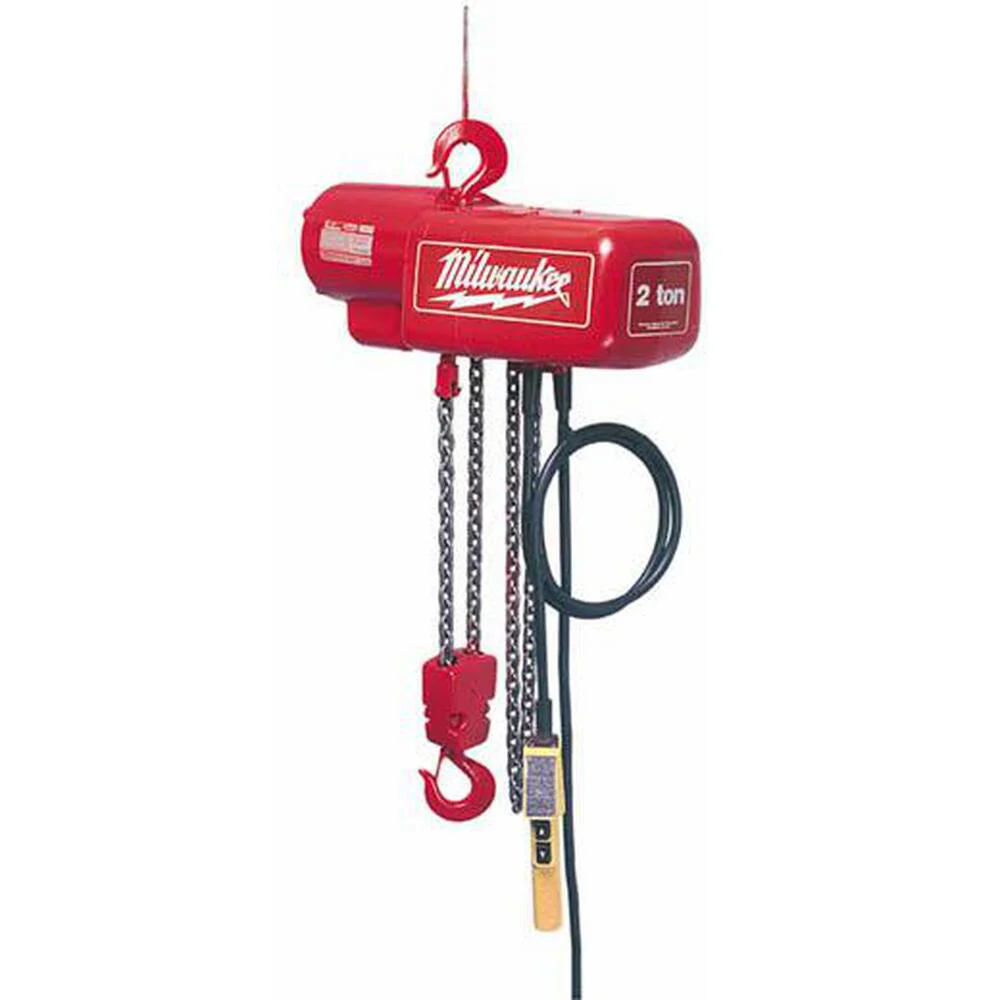

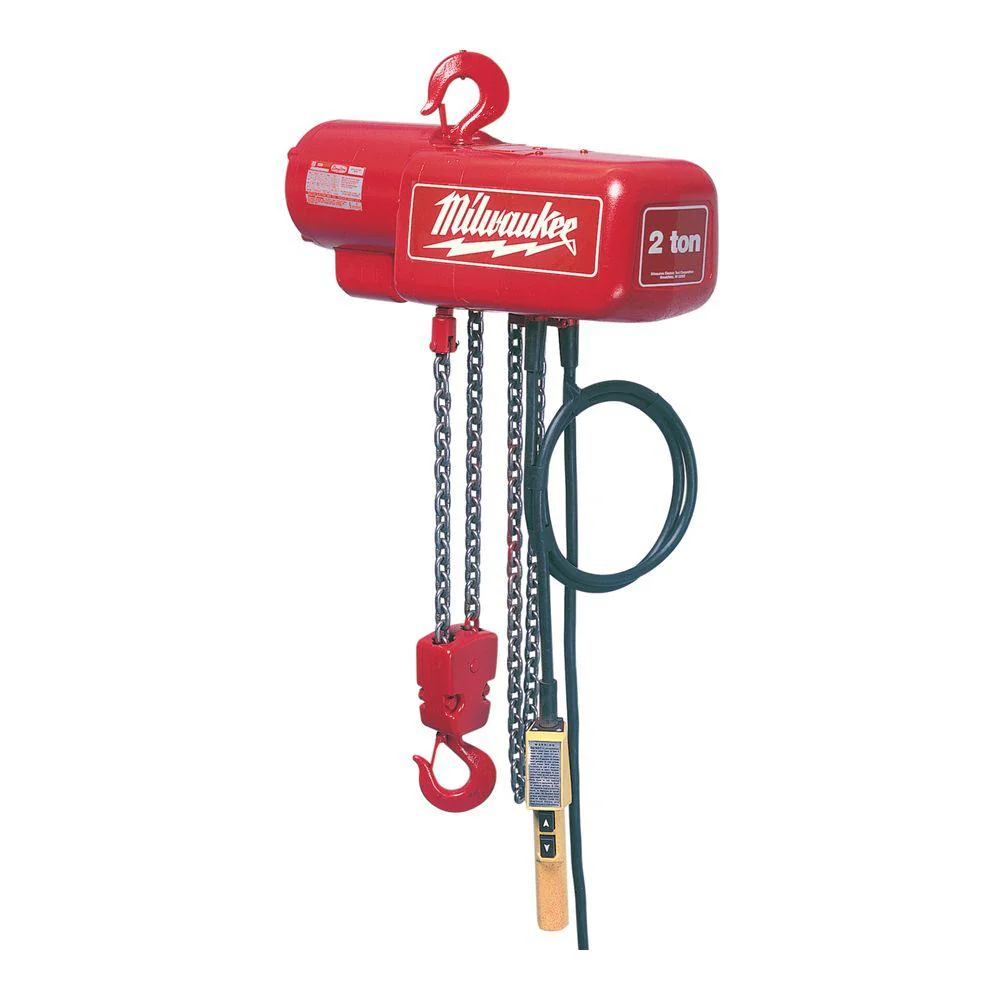

Milwaukee 9565 Hoist, 1 Ton/10'
The Milwaukee 1 Ton 10 ft. Electric Chain Hoist offers an array of load lift and height options from 1/2 ton to 2 tons load capacity and 10 ft. to 20 ft. lifting heights. Designed to meet your toughest needs, this tool has a multi-disc magnetic brake for positive load holding and spotting, adjustable upper and lower limit switches, overload limiting clutch and latch-type ridged top hook. Featuring a single-phase voltage motor, this hoist's 24-volt pushbutton station fits easily in your hand to allow thumb, trigger or 2-handed operation for superior control and ease-of-use.
- Single-phase, 115/230 voltage (AC), 16.0-amp at low voltage
- 1-ton rated load, 10 ft. lift height, 16 ft./min. lifting speed
- Built-in, multiple-disc, magnetic brake provides positive load holding and spotting
- Adjustable upper and lower limit switches for maximum flexibility in regulating load travel
- Includes: 1 ton 10 ft. electric chain hoist
- 5-year tool warranty
- Assembled Depth (in.): 11.0 in
- Assembled Height (in.): 17 in
- Assembled Width (in.): 27 in
- Control cord length (ft.): 6
- Pendant drop (ft.): 10
- Product Depth (in.): 12
- Product Height (in.): 17.0
- Product Length (in.): 27
- Product Width (in.): 27
- Adjustable limit switches: Yes
- Amperage (amps): 16
- Case Included: Yes
- Color Family: Red
- Cord Length (ft.): 8.0
- Corded Tool Type: Specialty
- Cordless/ Corded: Corded
- Full load lifting speed (ft./min.): 16
- Full load lowering speed (ft./min.): 16
- Horsepower (hp): 1 hp
- Magnetic disc brakes: Yes
- Motor Speed (RPM): 16
- Motor phase: Single Phase
- Mount type: Hook mount
- Overload limiting clutch: Yes
- Product Weight (lb.): 91lb
- Reconditioned: No
- Switch Type: Push Button
- Swivel load hook: Yes
- Tools Product Type: Power Tool
- Voltage (volts): 115
- Weight Capacity (lb.): 2000
Product Dimensions:
26.00 x 16.00 x 10.00 in
91.00 lbs
Shipping Dimensions:
27.00 x 11.00 x 17.00 in
